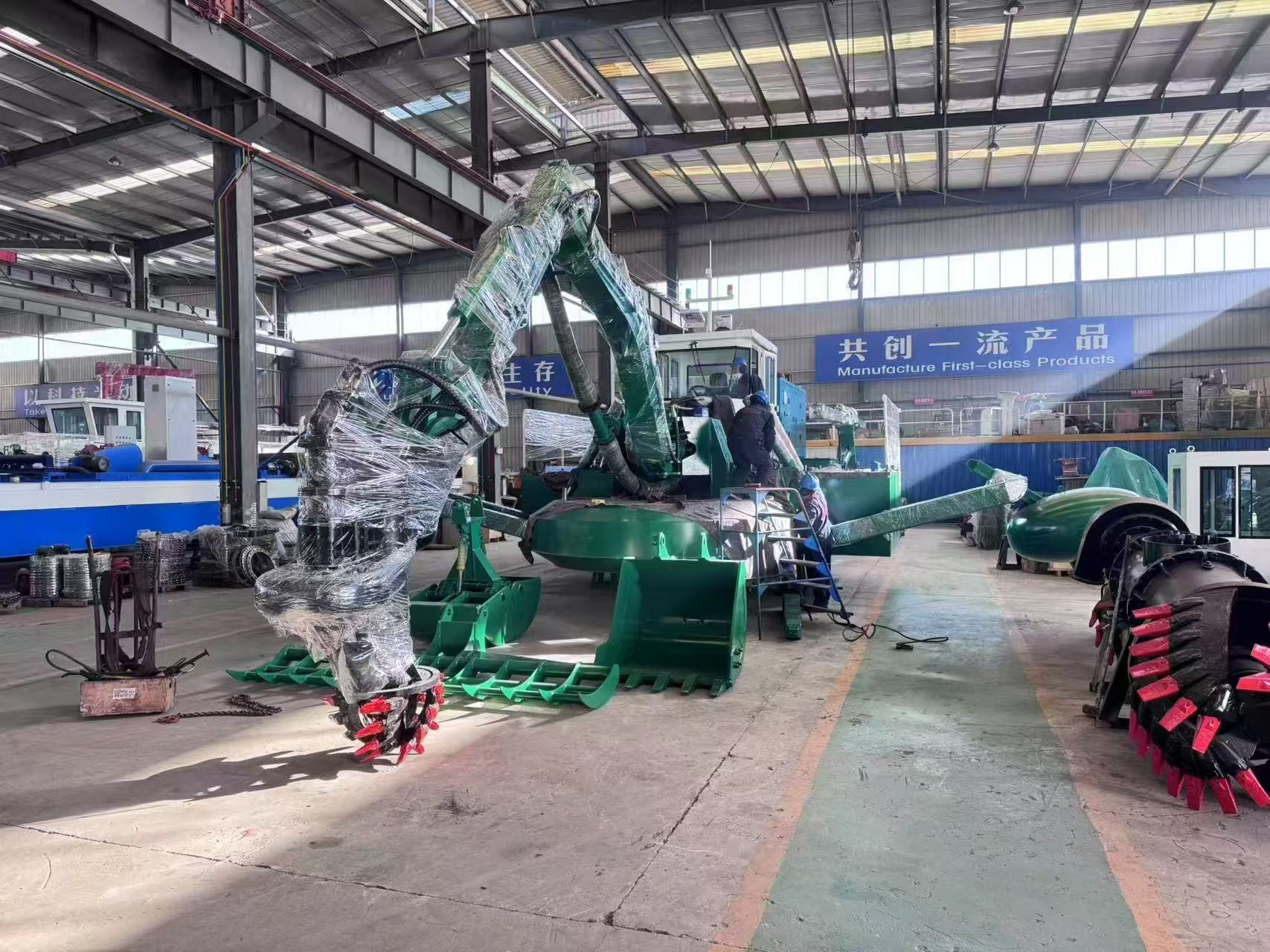

water master

No

Name

Specification

Remarks

1

Size(L*W*H)尺寸

11*3.3*3.1m

Transportation  （withoutboom）

11.8m

Transportation  （with boom）

16m

Transportation width*height

3*3.1m

Transportation weight

20ton

Max boom horizontal span

7.5m

Cutter depth under water

6m

Back hole dredging under water

6m

Floating body size

1.0m*2pcs

3

Engine

Cummins Made In China

Cooling type

Turbocharged and inter-cooled

Power

194kw (260hp)

Rotation speed

2200r/min

Fuel tank

1100L

Electric system

24V

emission

euro III

4

Hydraulic System

Rexroth series

Axial piston pump A

125mL/R

Max. operating pressure

25MPa

Propeller diameter

520mm

Propeller Blade

3 blades

5

Excavator

Bucket cylinder force

80kN

Lifting capacity at max. Reach

22kN

Lifting capacity with Power Lift at max reach

25kn

6

Stabilizer

Front stabilizer, max depth

5.2m

Rear tilting stabilizer, max depth

7m

7

Hull

4 compartments, corrosion resistant painting outside and inside, protective skid bars on bottom, slip-safe deck, 1100L fuel tank

Side pontoon size 5.3*1.0*0.65m，Rail included

,anti

slip, CCS corrosion paint inside and outside Hull structure -4unit water tight compartments,

8

Operation Room

Adjustable chair, movable side-window, air condition, PLC system, signal lights and floodlights

Self-propulsion, speed of 4 knots

10

Dredge Pump

Outlet diameter

250mm

Max. dredging depth

6m

Mud pump/shell bucket for 6.5m

Max. discharging distance

1200m

Distance longer make flow small

Water flow

600m3/h

Cutter mud Pump

Equipped

Rake

Equipped

Clam Bucket

Optional

Vertical Pile

Optional
