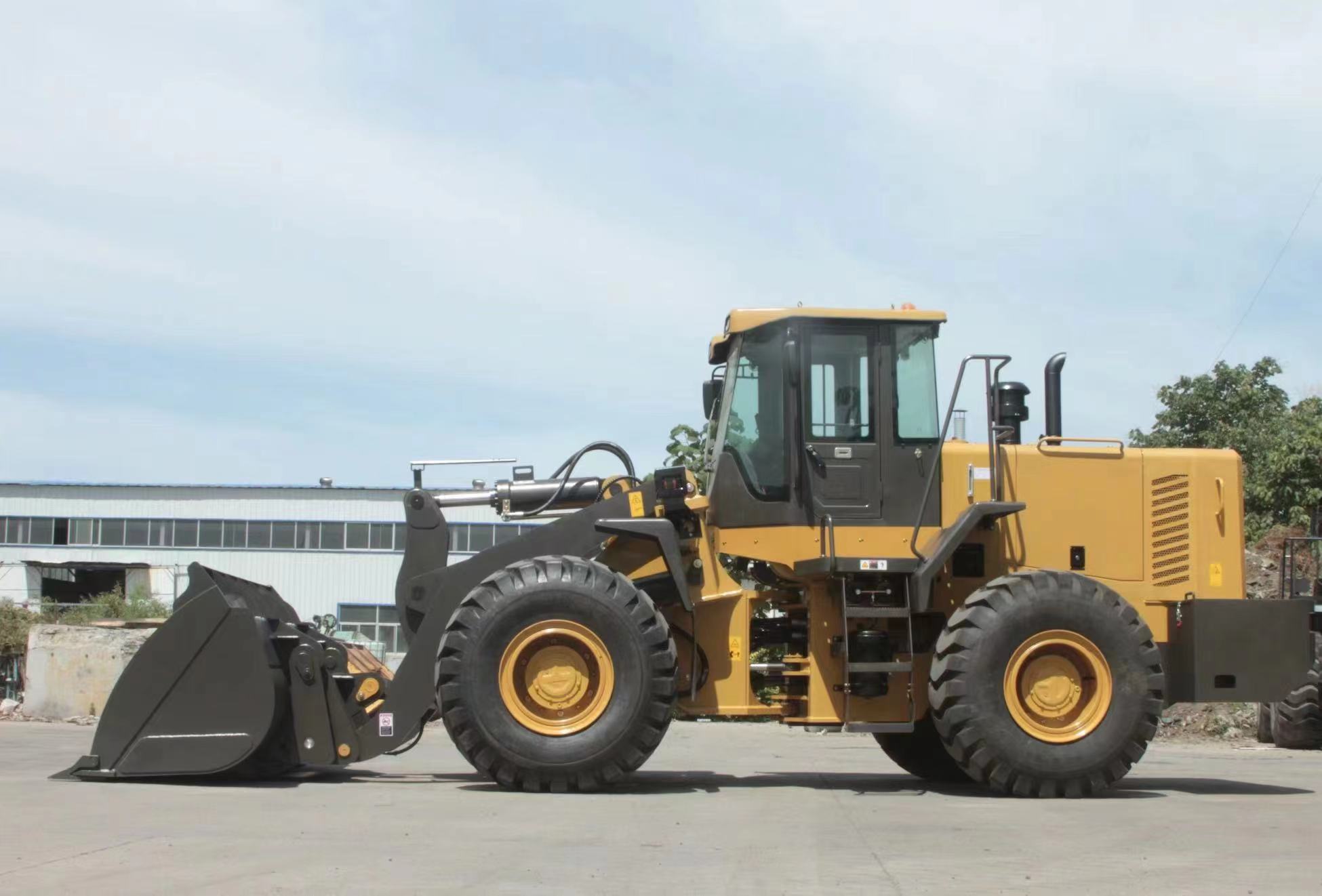

5 ton Wheel loader

5 ton loading wheel loader with 3 cbm bucket

性能参数Specification

斗容Rated capacity

3.0m³

额定载重Rated weight

5000kg

整机操作质量Operating weight

17000kg

最大崛起力Max. breakout force

180KN

最大卸载高度Max.dump height

3.1m

轴距Wheel base

3200mm

轮距Tread

2250mm

外形尺寸Overall dimensions (length*width*height)

8450*3024*3382mm

发动机Engine

潍柴WD10G220E23

型号Model

WEICHAI  STYRE WD10G220E23

型式Pattern

增压、直列、水冷、四冲程、直喷inline,water cooled,dir.inject,fourstrokees

额定功率Rated power

162KW

额定转速Specified rotational speed

2200r/min

传动系统型式 Transmission Pattern

单级三元件3-element,single stage

变速箱型式Pattern of gearboxes

Axial Full-power shift Transmission

变速箱型号Transmission model

杭齿ZL50 Hangzhou Advance ZL50

档位数Number of great shift

42 ,4forward 2reverse

最高车速Max.travel speed

40km/h

主传动型式Main reducer type

圆弧圆锥齿轮一级减速 arc taper gear moderation of first grade

轮边减速型式Pattern of wheelside moderation

单排行星齿轮减速planet gear moderation of single

轮胎规格Type size

23.5-25

转向角Steering angle(each direction)

36.5°±1
