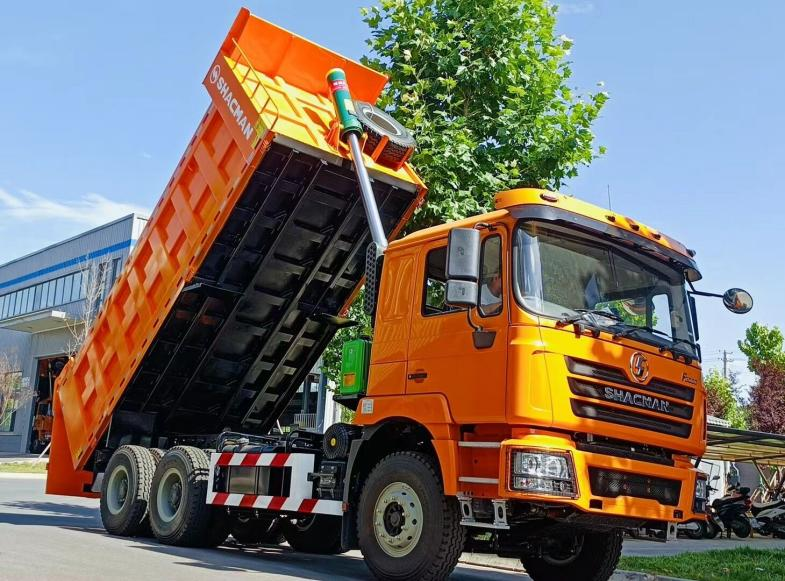

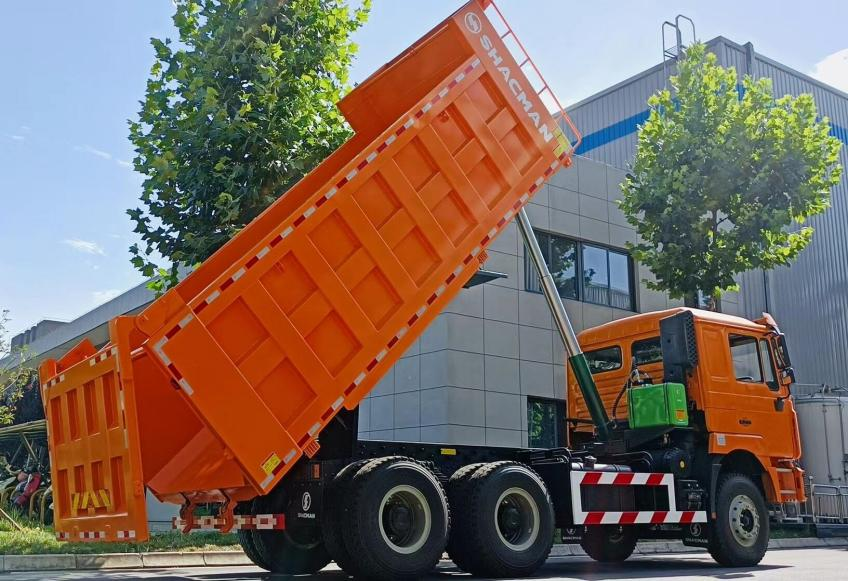

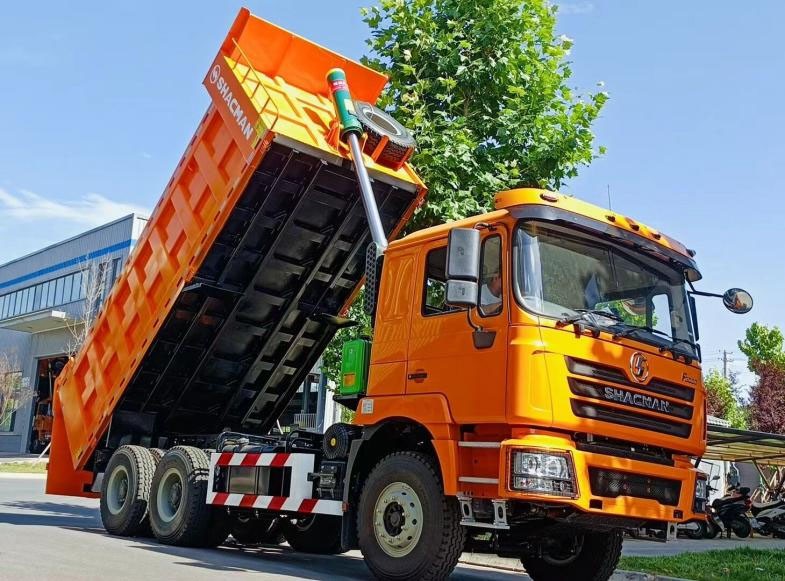

Shacman F3000 dump truck

Driving type

6x4

Type

dump truck

Weight(Kg)

Kerb mass (Kg)

13500

GVW(Kg)

50000

Dimensions

LxWxH (mm)

8350x2550x3450

Wheel base (mm)

3775+1400

Performance

Max. speed ( km/h)

80

Max. grade ability(%)

25

Engine

Brand

WEICHAI

Modle

WP10.380E22

Rated Output (kw/HP)

280/380

Torque(N.m/rpm)

1600/1200-1600

Rated speed(r/min)

2200

Displacement (L)

9.796

Emission standard

Euro II

Transmission

Brand

FAST

Model

10JSD180

Control type

Manual

Gear shift

10-forward and 2-reverse speeds

Ratio

F:14.86/11.02/8.07/6.02/4.46/3.33/2.47/1.81/1.35/1  R:14.24/3.19

PTO

QH50

Clutch

Type

Diaphragm spring

Diameter (mm)

Ф430

Axles

Brand

MAN

Front axle

9500Kg

Rear axle

16000Kg*2

Gear ratio

5.92

Brakes

Type

Drum

Service brake

With dual-circuit compressed air brake

Parking brake

Power spring brake acting on front & rear wheel

Steering

Type

ZF Technology right hand drive

Suspension

Type

Front& rear many-leaf spring，4-main leaves+4 U-bolts

Frame

Type

850x300(8+7）mm

Tyre

Type

315/80R22.5

Numbers

10+1 pcs

Fuel tank

Tank capacity (L)

360L

Material

aluminum alloy

Electric system

Type

24V

Battery

165Ah

Cabin

Type

F3000   flat roof   (Single bed)

Equipment

Hydraulic main seat, four point hydraulic suspension, electrically controlled automatic temperature control air conditioning, electric window rocking machine, metal bumper, water tank protection grille, front headlight protection grille, tail light protection grille, reverse buzzer, long-term coarse filter

Dumper body

Body dimensions(mm)

5600x2300x1550mm

Body type

Manganese plate, Bottom 8 mm side 6mm

Lifting system

Front lifting system, China Brand 180
