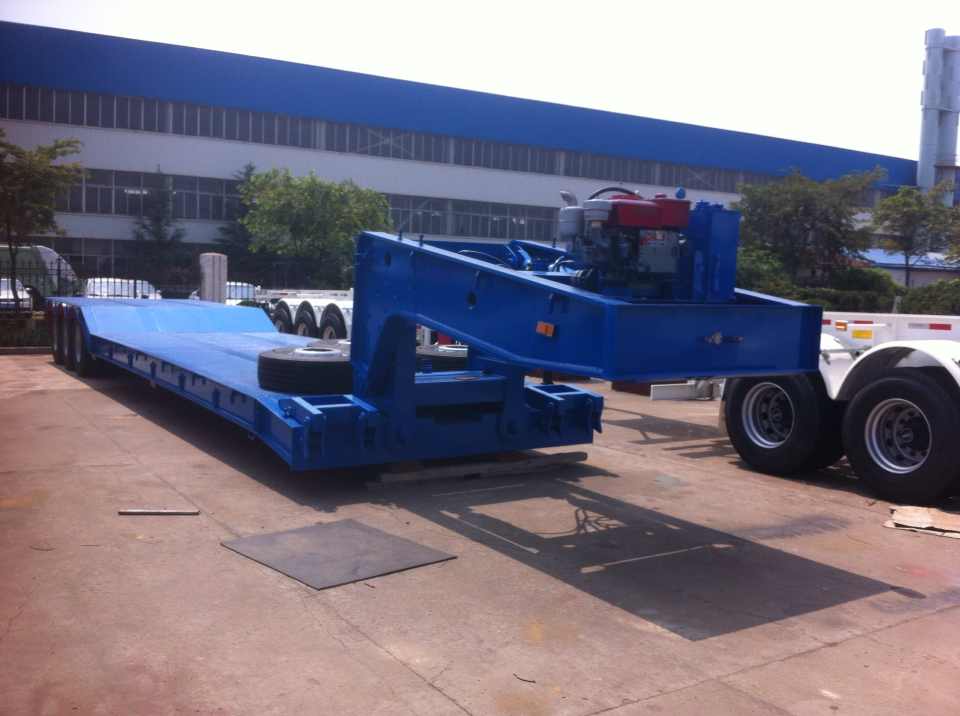

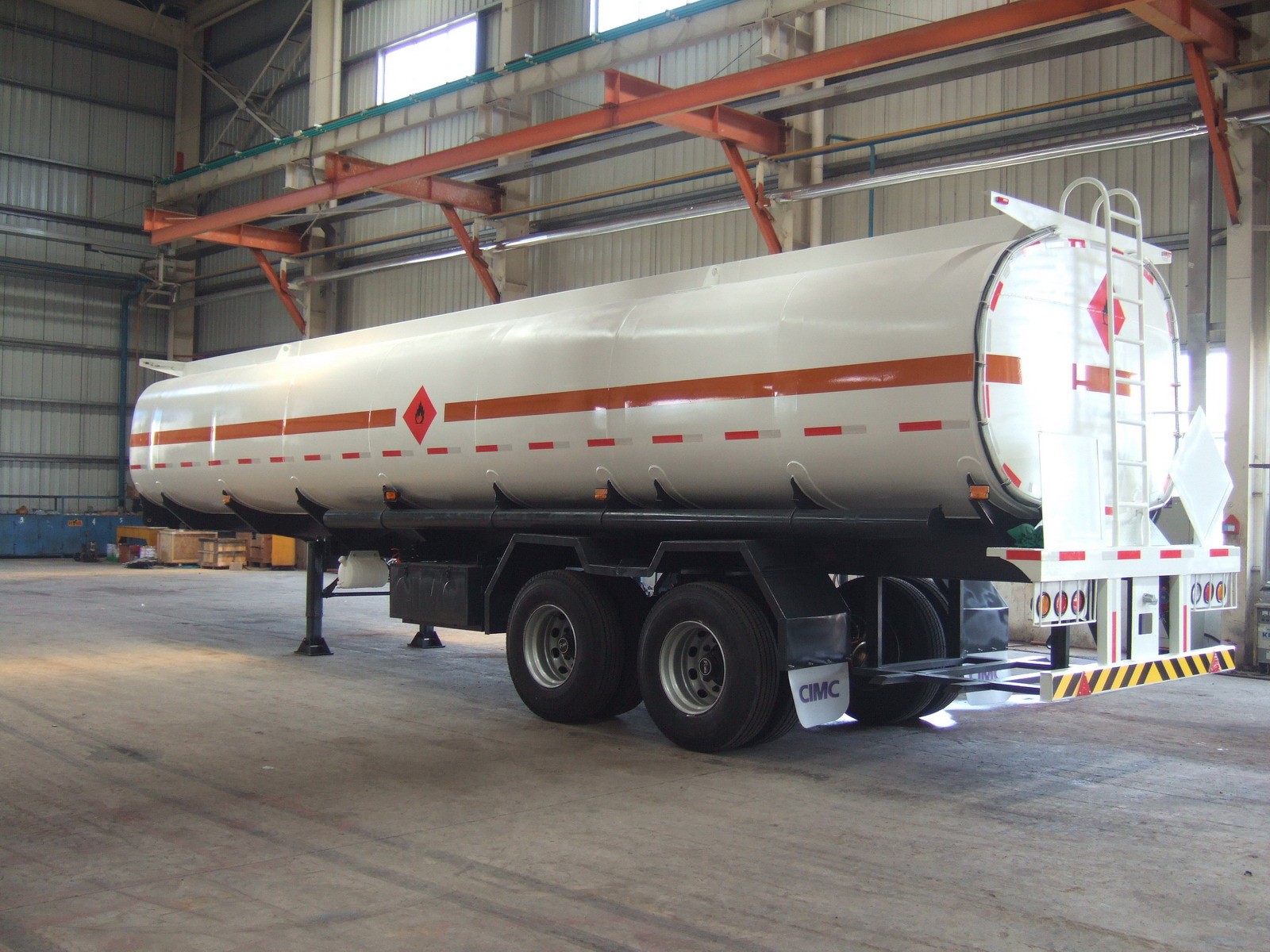

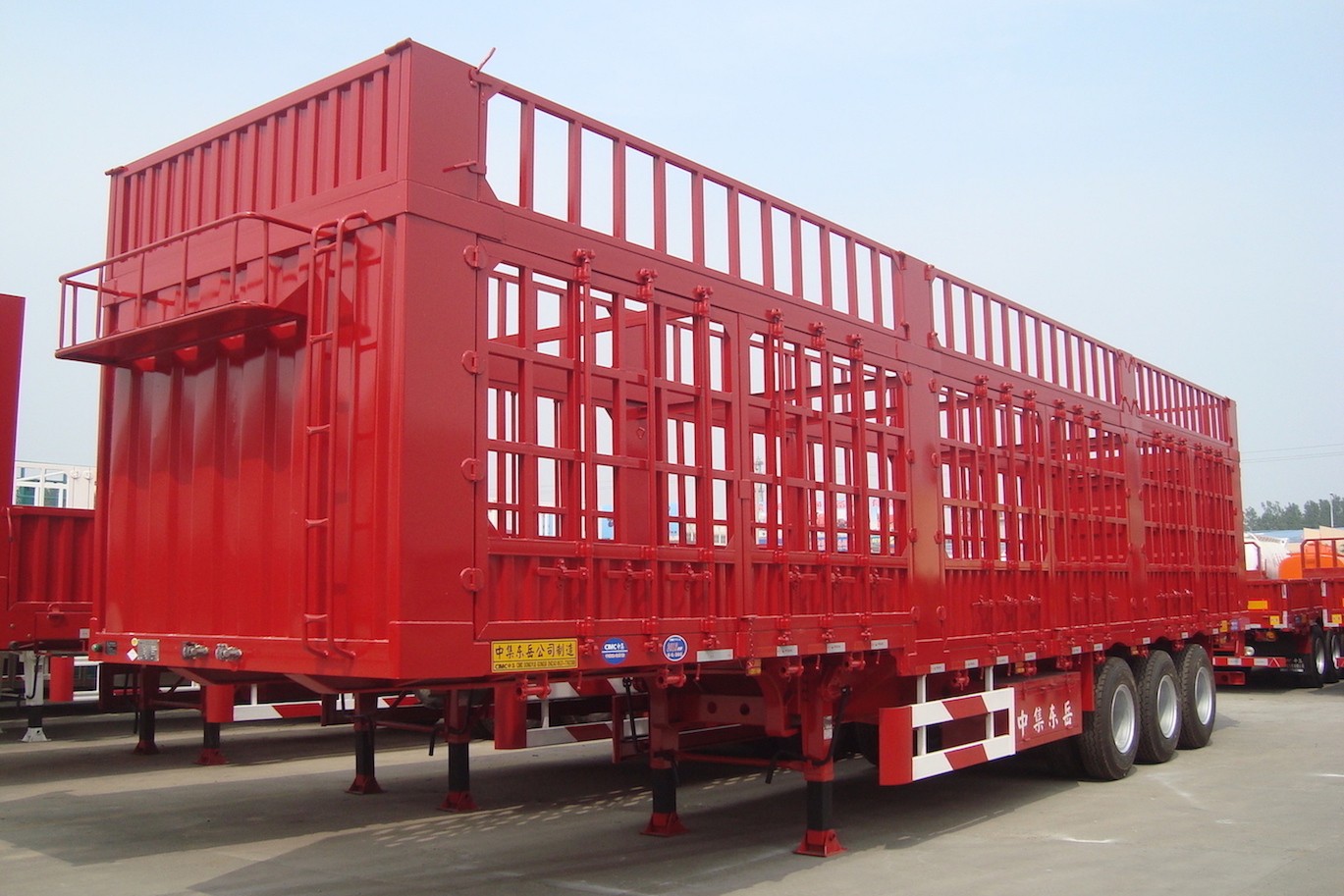

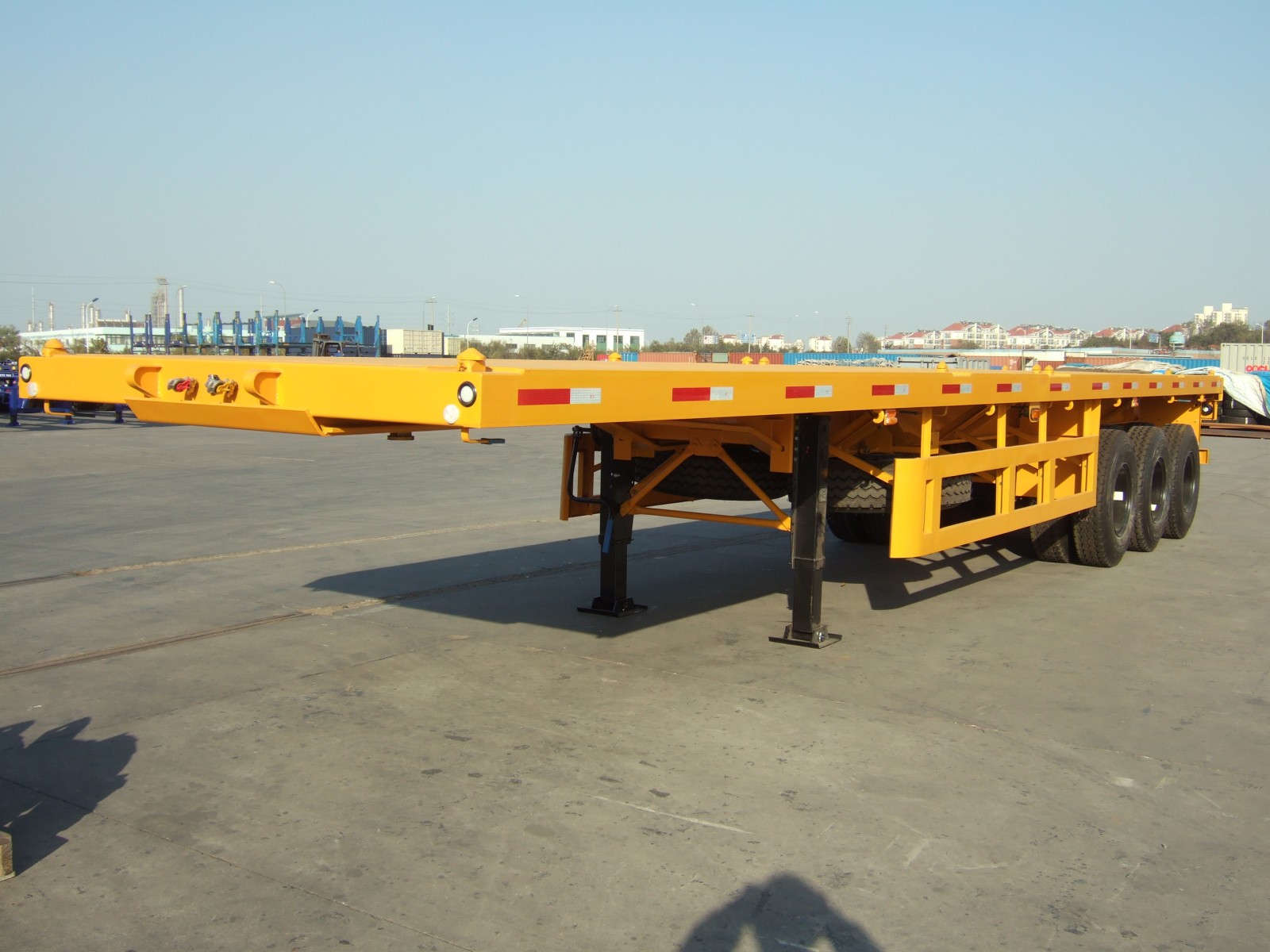

semi truck trailer with various type, such like contianer flatbed trailer, machinery lowbed trailer, side drop cargo trailer, dump trailer and special purpose trailer trucks
The 40ft Trailer is designed for use in stevedoring and transporting of 1x40 ft or 1x20ft or 2x20 ft ISO cargo containers or loose cargo.
Dimension:
Length: 12,233 mm (approximate)
Width: 2,438 mm
Height: 1,469mm
King Pin Location: 450 mm from the front face of the front bolster
Axle spacer: 7,900mm + 1,310mm+ 1,310mm
Landing Gear location: 2,420mm behind the king pin location
(The above dimension will be adjusted according to the tractor specification. )
Weight:
Tare Weight (Tolerance 0~-4%): approximate 4,450 kg
Max.Payload: 45,480kg
GVWR: 50.930kg
Contact: Bill Wang
Phone:
Tel:
Email: 253506684@qq.com
Add: Room 5-607,37 Jiushuixi rd, Qingdao,China
